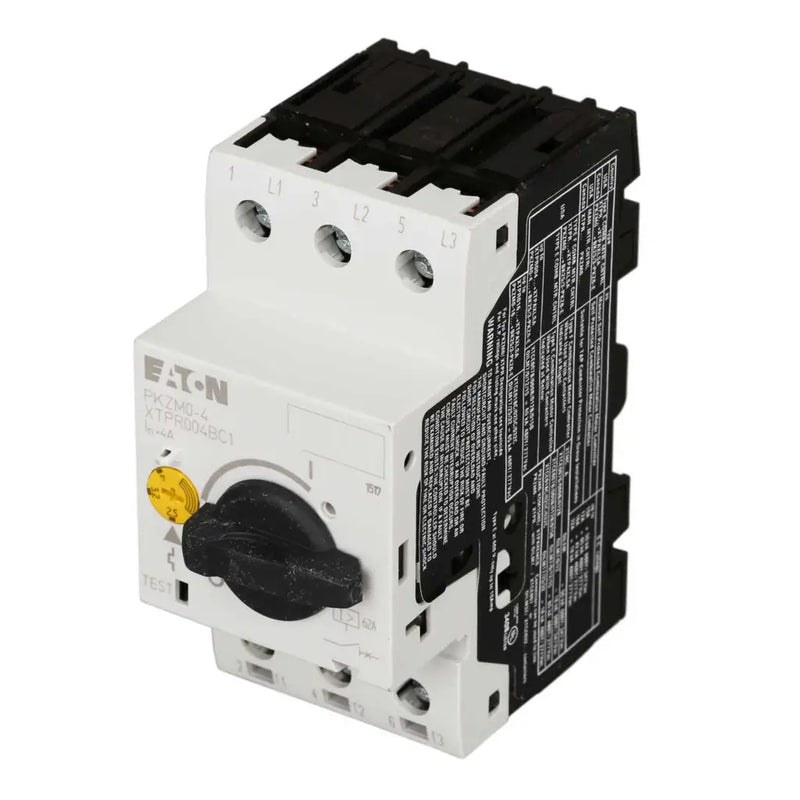

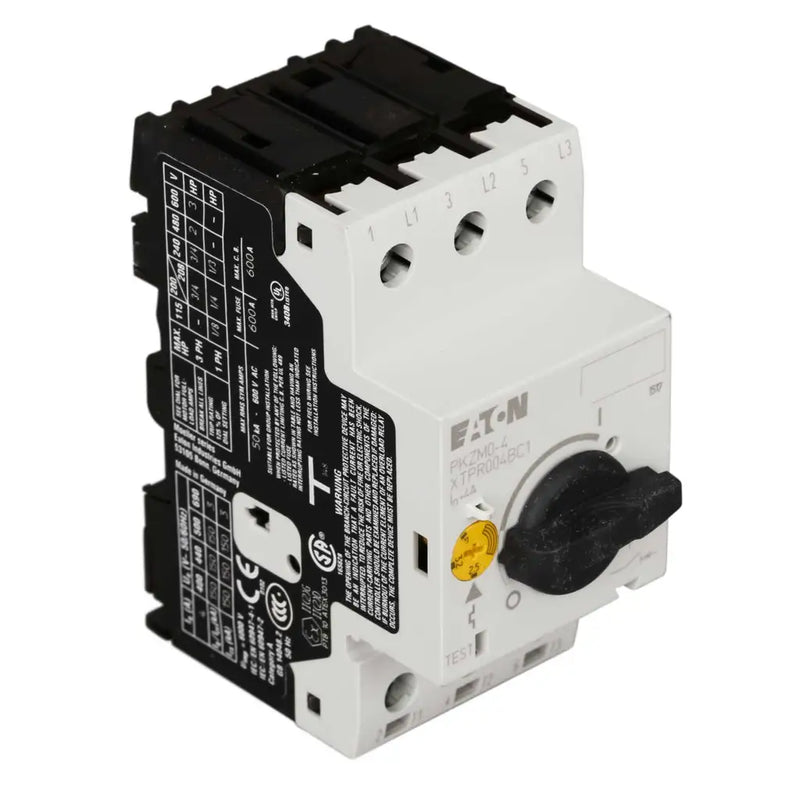

Moeller PKZM0-4 4A 3 Pole Motor Protective Circuit Breaker
by Moeller
Original price
£92.00
-
Original price
£92.00
Original price
£92.00
£92.00
-
£92.00
Current price
£92.00
Features
- Provides isolation, short circuit and overload protection
- Rotary switch with clear switch position display
- Isolation Characteristics: IEC EN60947-3
Specifications
- Brand
- Moeller
- Colour
- Black/Grey
- Depth
- 77mm
- Dimensions
- (H)93 mm x (W)45 mm x (D)77 mm
- Frequency
- 40/60 Hz
- Guarantee
- 1 Year
- Height
- 93mm
- IP Rating
- IP20
- Mechanical Shock Resistance
- 25g Shock duration 10ms Half-Sinusoidal according to IEC 60068-2-27
- Mounting
- Din Rail
- Number of Poles
- 3 Pole
- Operating Temperature Range
- -25 - 55°C
- Overload Rating
- 2.5 - 4A
- Packaging Types
- Each
- Product Range
- PKZM0
- Short Circuit Rating
- 60kA
- Standards
- IEC/EN 60947-4-1; UL 60947-4-1; CSA - C22.2 No. 60947-4-1-14; CE Marking
- Storage Temperature Range
- -40 - 80°C
- Suitable For
- Branch Circuit: Manual Type E if used with Terminal, Group Installations
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 690V
- Weight
- 0.303kg
- Width
- 45mm
