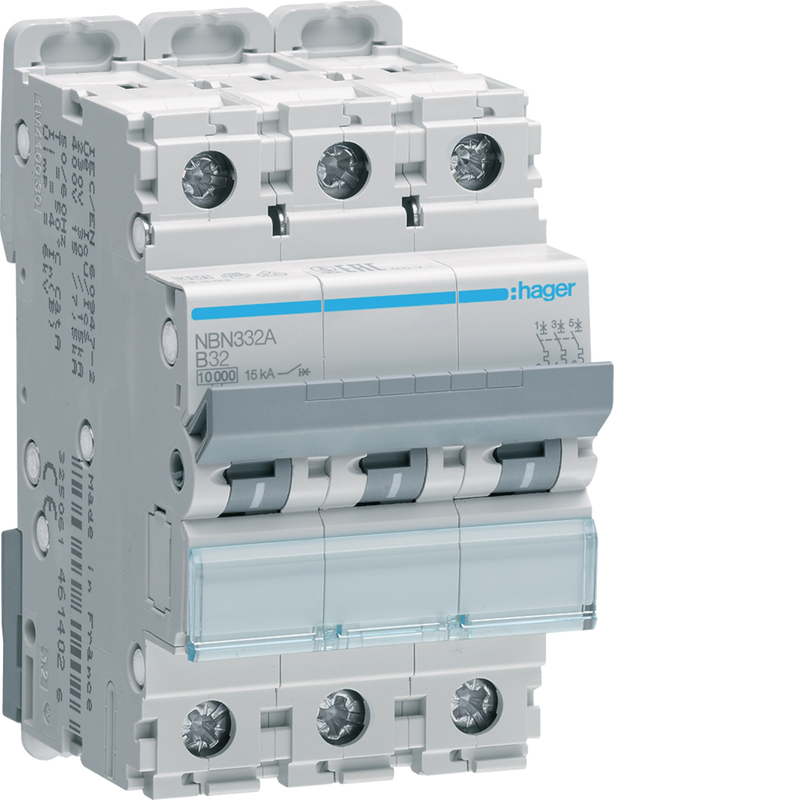

Hager NBN332A 32A Triple Pole 10kA B Curve MCB

Name: Hager NBN332A 32A Triple Pole 10kA B Curve MCB
Brand: Hager
SKU: NBN332A
Price: 45.0 GBP
Availability: InStock

by Hager

£45.00 - £45.00

£45.00

£45.00 - £45.00

£45.00

Quantity

Rated current

32 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA
Rated current -25°C

39.04 A
Rated current at -20°C

38.45 A
Rated current -15°C

37.86 A
Rated current -10°C

37.25 A
Rated current -5°C

36.64 A
Rated current at 0°C

36.01 A
Rated current 5°C

35.37 A
Rated current 10°C

34.73 A
Rated current 15°C

34.06 A
Rated current at 20°C

33.39 A
Rated current 25°C

32.70 A
Rated current 30°C

32 A
Rated current 35°C

31.26 A
Rated current at 40°C

30.50 A
Rated current at 45°C

29.72 A
Rated current at 50°C

28.92 A
Rated current 55°C

28.10 A
Rated current 60°C

27.26 A
Rated current 65°C

26.38 A
Rated current 70°C

25.48 A

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
