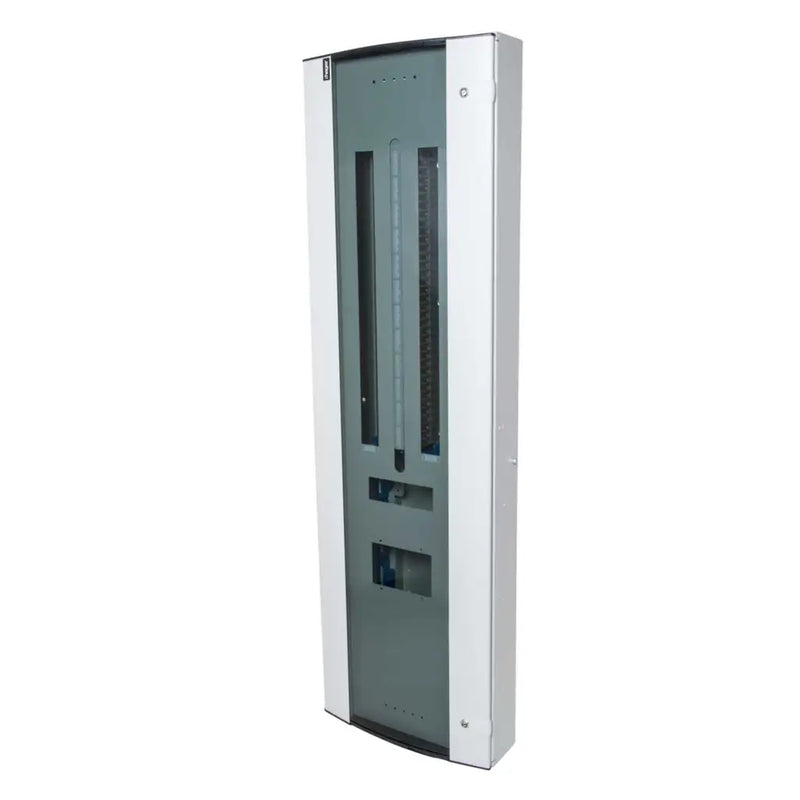

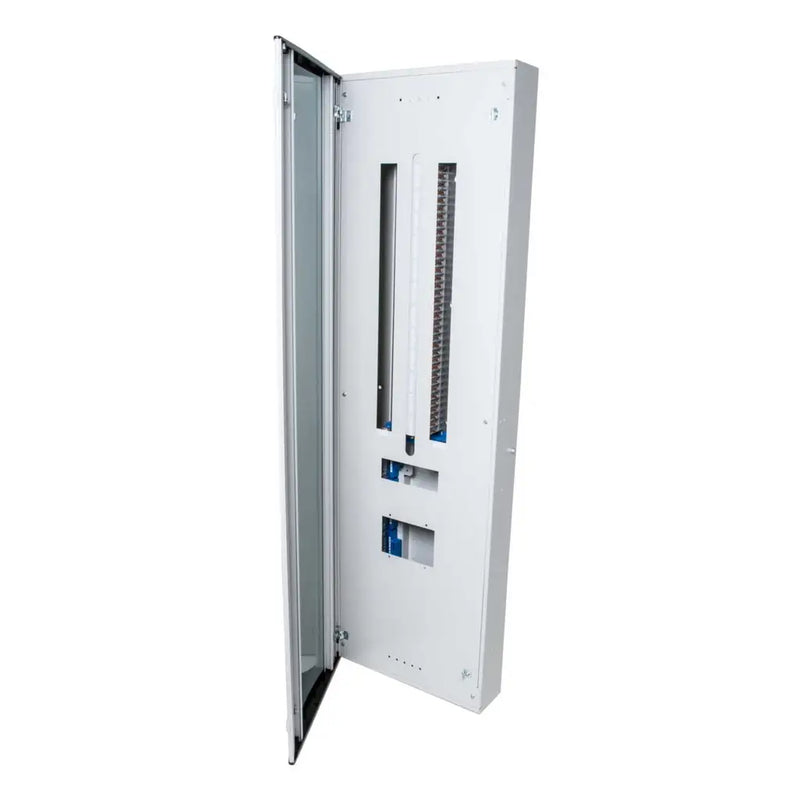

Hager JK224BG 24 Way 250A TP+N Type B Distribution Board without Incomer
Hager JK224BG 24 Way 250A TP+N Type B Distribution Board without Incomer

Hager JK224BG 24 Way 250A TP+N Type B Distribution Board without Incomer

by Hager
£820.00 - £820.00
£820.00
£820.00 - £820.00
£820.00
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    250 A
Equip­ment
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,550 mm
  • Width
    465 mm
  • Depth
    165.50 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Key lock, Quarter turn lock
