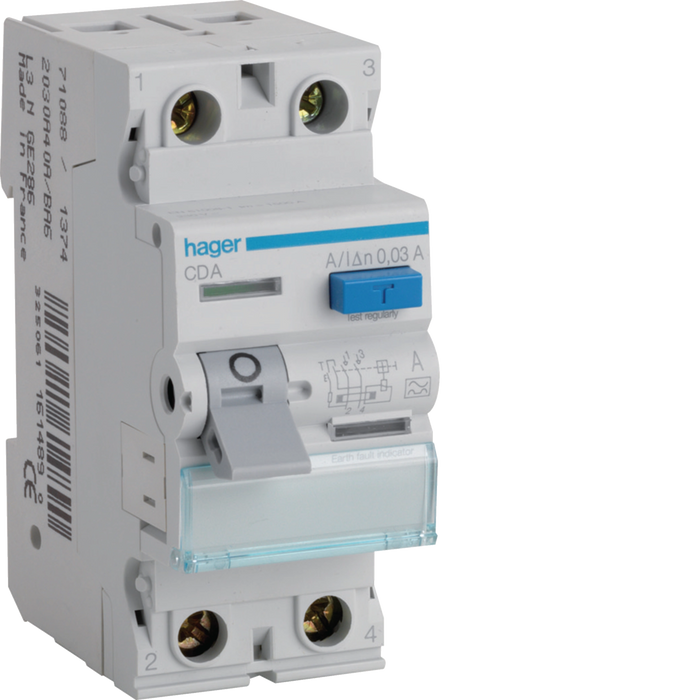

Hager CDA263U 63A 2 Pole 30mA Type A RCD

Hager CDA263U 63A 2 Pole 30mA Type A RCD

by Hager

£75.10 - £75.10

£75.10

£75.10 - £75.10

£75.10

Quantity

Type of pole

1P+N

Rated current

63 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

1.50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

63 A
Rated current at -20°C

63 A
Rated current -15°C

63 A
Rated current -10°C

63 A
Rated current -5°C

63 A
Rated current at 0°C

63 A
Rated current 5°C

63 A
Rated current 10°C

63 A
Rated current 15°C

63 A
Rated current at 20°C

63 A
Rated current 25°C

63 A
Rated current 30°C

63 A
Rated current 35°C

63 A
Rated current at 40°C

63 A
Rated current at 45°C

63 A
Rated current at 50°C

63 A
Rated current 55°C

63 A
Rated current 60°C

56 A
Rated current 65°C

49 A
Rated current 70°C

40 A
Connection
- Cross-section of input and output with screws, for massive conductors

  1 - 25 mm²
- Cross-section of input and output with screws, for flexible conductors

  1 - 16 mm²
- Cross-section flexible conductor

  16 mm²
- Cross-section rigid conductor

  25 mm²
Power
- Total power loss under IN

  8.10 W
Use conditions
- Max. Altitude

  2,000 m
Endurance
- Electric endurance in number of cycles

  2,000
- Number of mechanical operations

  4,000
Connectivity
- Type of connection

  Screw terminal
- Top connection alignment for modular devices

  Aligned terminal
- Down connection alignment for modular devices

  Aligned terminal
Dimensions
- Height

  83 mm
- Width

  35 mm
- Depth

  70 mm
