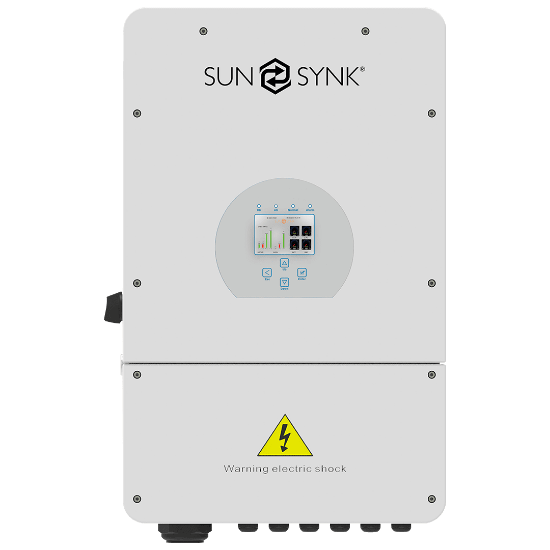

Sunsynk 8K-SG04LP3 8kW 3-Phase Hybrid Inverter

The Sunsynk 8kW 3-Phase Hybrid Inverter 8K-SG04LP3 is a highly reliable and efficient power management tool for three-phase grid applications. The hybrid inverter allows the simple integration and management of power from solar panels, the main electrical grid and generators. Power can be stored and distributed to your applications as required.

With the unique ability to balance loads across phases while ensuring perfect phase rotation, hybrid inverters in this range offer unmatched flexibility in power distribution. The inverters come with an interactive display, RS485 Wi-Fi interface and a reassuring 5-year warranty.

PRODUCT FEATURES

• Easy to use LCD display
• RS485 Wi-Fi interface
• Configurable AC / solar / generator charger priority by LCD setting
• Overload/over-temperature/short-circuit protection
• Up to 16 inverters in parallel

TECHNICAL SPECIFICATION

• Rated AC output and UPS power: 8000W
• Grid type: Three Phase
• Battery type: Lead-acid or Li-Ion
• Battery voltage range: 40Vd.c - 60Vd.c
• Max. DC input power: 10,400W
• MPPT range: 200Vd.c - 650Vd.c
• Start-up voltage: 160V
• Max. efficiency: 97.60%
• Protection degree: IP65
• Dimensions: 422 x 702 x 281 mm (W x H x D)
• Weight: 38.5kg
• Warranty: 5 years
