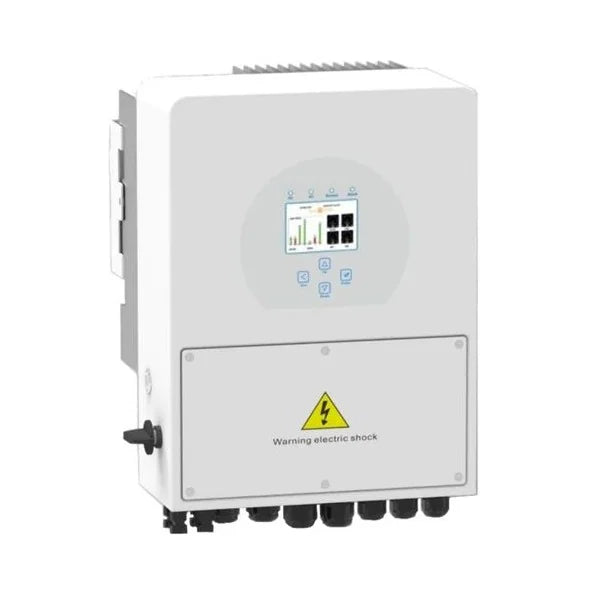

SUNSYNK 3.6K-SG01LP1 3.6KW Single Phase Inverter ECCO

The Sunsynk 3.6K-SG01LP1 Hybrid Inverter offers advanced control of power sources including solar PV, grid, battery, generator, and wind. With a 3.6kW output and seamless transfer time, it provides reliable backup and efficient energy use, ideal for domestic and light commercial applications. The ECCO model supports scalable expansion, parallel operation, and flexible installation modes.

• Multi-Input Versatility: Accepts solar, battery, grid, generator, or wind input for fully integrated off/on-grid systems.
• Reliable Backup & Fast Transfer: 3600W continuous and backup power output with ≤10ms transfer time ensures minimal disruption.
• Battery Compatibility: 48V DC system supports Li-ion or lead-acid batteries; charger self-adapts to BMS, rated up to 90A.
• Advanced Features: Dual MPPT, programmable export, 6-stage TOU, and IP65 weatherproof rating for flexible installs.
• ECCO Model Enhancements: Meter port support, AC-coupling capability, and higher PV input (up to 7000W).

Technical Specification

• Rated Power Output: 3600W (AC) / 3600W Backup
• Max Solar Input: 7000W / 500V DC / 2 x 13A
• Battery Voltage: 48V DC / Charger: 90A
• MPPT Range: 150–425V (2 MPPTs)
• Output Voltage: 220/230/240Vac | IP Rating: IP65
