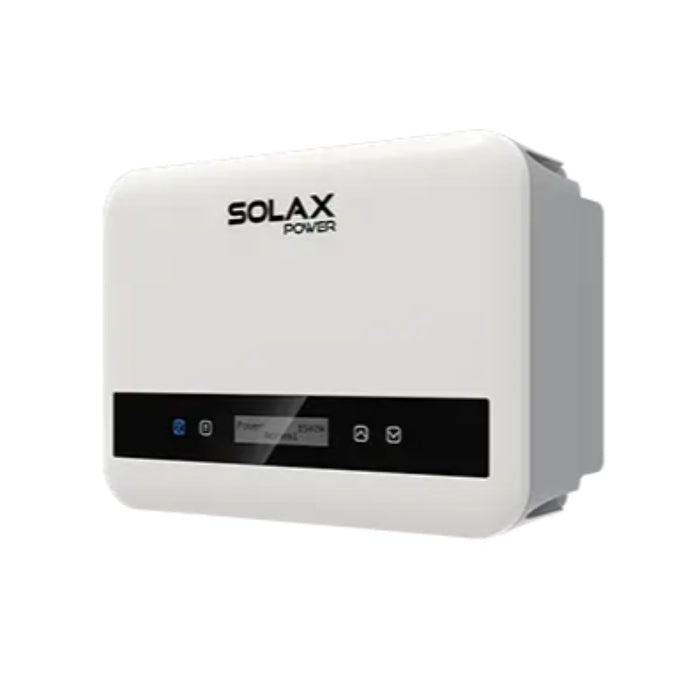

Solax X1-MINI 1.5kW Single Phase Inverter with DC

The Solax X1-1.5MDC is a 1.5kW Single Phase Inverter from the X1-MINI G4 range.

Designed for residential on-grid applications, X1-MINI G4 inverters are extremely efficient, with 200% oversizing capability, a wide MPPT voltage range and global MPP scan.

Solax X1-MINI 1.5kW Single Phase Inverter

Technical Specification

• Max. recommended PV array power: 3 kWp
• Max. PV input voltage: 450 V
• Nominal PV input voltage: 360 V
• Operating voltage range: 35 ~ 450 V
• MPPT voltage range: 40 ~ 450
• Start-up voltage: 50 V
• No. of MPP trackers / Strings per MPP tracker: 1 / 1
• Rated output power: 1500 W
• Max. efficiency: 98.0 %
• Ingress protection: IP66
• Dimensions: 290 x 206 x 120 mm (W x H x D)
• Net weight: 5.2 kg
