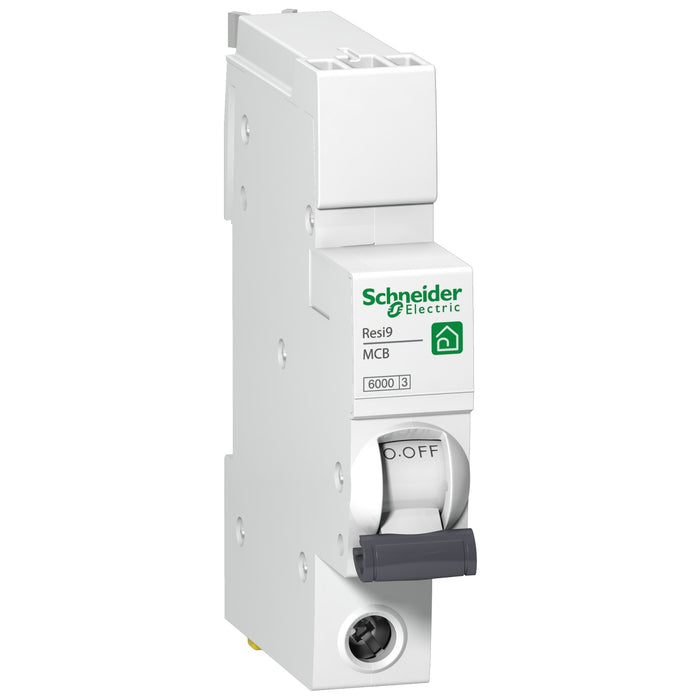

Schneider R9F87120 MCB SP Type B 20A 6kA

This Resi9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 20A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to EN 60898 standard. This product is compliant with BS EN 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Resi9 is a biconnect bottom feed system with minimized wiring thanks to its fork comb busbars The Resi9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 96mm x (D) 78mm. The weight is 0.23kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 40°C. The storage temperature is -40°C to 80°C.
